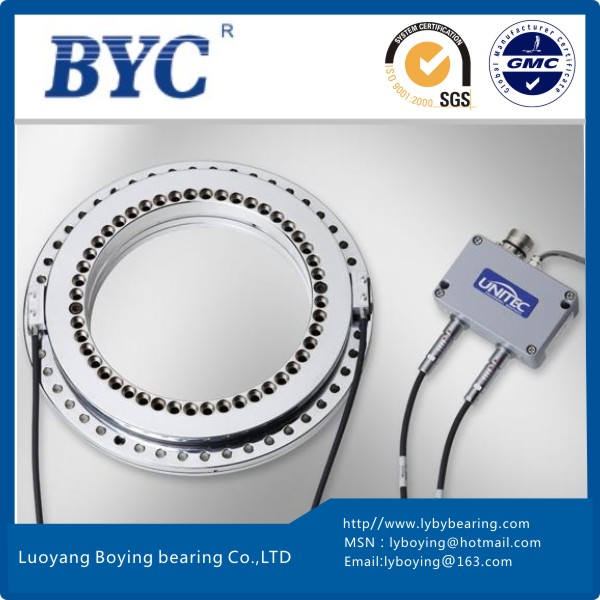

YRTM395 (IDxODxH:395x525x65mm) Rotary Table Bearings| Axial/Radial Turntable bearing
Author： Release time：2016-06-04 Browse times：2368
| YRTM395 (IDxODxH:395x525x65mm) Rotary Table Bearings| Axial/Radial Turntable bearing | ||||||||||||||||||
| A . Rotary Table Bearings Parameters | ||||||||||||||||||
| Brand | BYC | |||||||||||||||||
| Model number | YRTM395 | |||||||||||||||||
| Inner ring | 395mm | |||||||||||||||||
| Outer ring | 525mm | |||||||||||||||||
| Width | 65mm | |||||||||||||||||
| Weight | 33kg | |||||||||||||||||
| Materials | GCR15/GCR15SiMn | |||||||||||||||||
| Precision | P4/P2 | |||||||||||||||||
| Lubrication | Grease lubrication | |||||||||||||||||
| Rotating part | Inner ring/Outer ring | |||||||||||||||||
| Load direction | Multi-load | |||||||||||||||||
| Structure | Integrated Inner/Outer Ring,Mounting Hole in Outer ring | |||||||||||||||||
| B . YRTM395 Rotary Table Bearings Specification Sheet | ||||||||||||||||||
 | ||||||||||||||||||
| Model Number | Main dimensions (mm) | Fixing Hole (Inner ing) | Fixing Hole (Outer ing) | Number of retaining screws | Extraction thread hole | Number of pitches x Angle | ||||||||||||
| d | D | H | H1 | C | D1 | J | J1 | d1 | d2 | a | Num | d3 | Quantity | G | Quantity | |||
| YRTM395 | 395 | 525 | 65 | 42.5 | 20 | 486 | 415 | 505 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 | 2 | M12 | 3 | 48×7.5° |
| C . YRTM type Rotary Table Bearings Details | ||||||||||||||||||
| Product Features | Axial/radial bearing YRTM: YRTM Series rotary table bearings Axial/radial bearing YRTM: Bearing of YRTM series correspond in the double direction thrust cylindrical roller combined bearing YRT,but are additionally fitted with a steel ruler, to control and adjust the double direction thrust cylindrical roller bearing rotation accuracy, and guarantee the machine high precision operation. | |||||||||||||||||
| Series Model No. | YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580 | |||||||||||||||||
| Applications | Product Application •Precision machine tools •precision Turntable, NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment •Indexing plate of other precision machines etc | |||||||||||||||||
