300XRN50 (330.2x457.2x63.5mm) CNC vertical lathe Turntable bearing

Author： Release time：2016-06-08 Browse times：2630

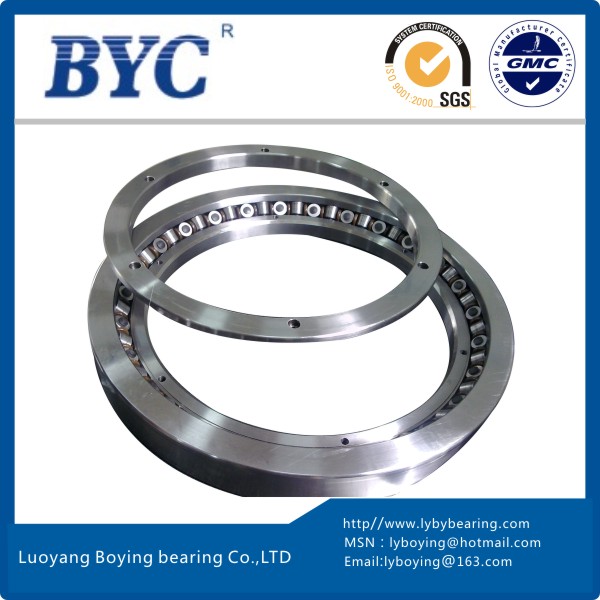

300XRN50 (330.2x457.2x63.5mm) Cross Tapered Roller Bearings|CNC vertical lathe Turntable bearing

A . Cross Tapered Roller Bearings Parameters

Brand

BYC

Model number

XR678052 / 615661A / 300XRN50 / - / PSL 912-309A

Inner ring

330.2mm

Outer ring

457.2mm

Width

63.5mm

Weight

35kg

Materials

GCR15/GCR15SiMn

Precision grade

P5/P4/P2

Lubrication type

Grease lubrication

Rotating part

Outer Ring Rotation

Load direction

Multi-load

Structure

Separable Inner Ring

B . XR678052 Cross Tapered Roller Bearings Specification Sheet

Model
Number

Main dimensions (mm)

Basic dynamic
load rating

Limiting
speed
(Oil)
r/m

Weight
(Kg)

Exchange model

Inner ring
d (mm)

Outer ring
D(mm)

Width B(mm)

Chamfer r(min)

Radial
Cr(KN)

Axial
Ca(KN)

SKF

NACHI

URB

PSL

XR678052

330.2

457.2

63.5

98.4

620

615661A

300XRN50

PSL 912-309A

C . XR type Cross Tapered Roller Bearings Details

Product Features

Cross tapered roller bearing contains two sets of races and rollers brought together at high angles with alternate rollers facing in opposite directions. The height of cross section is similar to single-row bearing for conserving space and saving bearing housing material.And the steep-angle,tapered geometry results in a total effective bearing spread much greater than the width of the bearing itself.

Series Model No.

XR496051,XR678052(PSL912-309A),XR766051(PSL912-308A),XR820060(PSL912-304A),XR855053(PSL912-305A),XR882055(PSL912-306A),XR889058(PSL912-307A),XR897051,JXR637050,JXR652050,JXR699050 ,616093A,615661A,300XRN50,615894A,0457XRN060, XD.10.0457P5 ,615662A,580XRN76, XD.10.0580P5 ,615659A,0685XRN091, XD.10.0686P5 ,615895A, 0901XRN112, XD.10.0902P5 , BFKB353282/HA4, 1028XRN132 , XD.10.1029P5 ,615898A, XD.10.1549P5

Applications

Product Application
•Industrial Robotic arm,Reducer drive
•Precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Aviation equipment,Military radar etc

D . XR type Cross Tapered Roller Bearings Installation & Cautions
