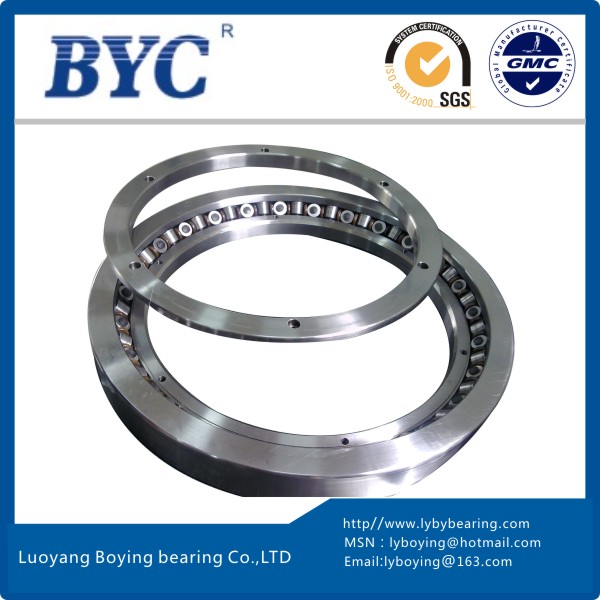

580XRN76 (580x760x80mm) CNC vertical lathe Turntable bearing

Author： Release time：2016-06-08 Browse times：2867

580XRN76 (580x760x80mm) Cross Tapered Roller Bearings|CNC vertical lathe Turntable bearing

A . Cross Tapered Roller Bearings Parameters

Brand

BYC

Model number

XR820060 / 615662A / 580XRN76 / XD.10.0580P5 / PSL 912-304A

Inner ring

580mm

Outer ring

760mm

Width

80mm

Weight

100kg

Materials

GCR15/GCR15SiMn

Precision grade

P5/P4/P2

Lubrication type

Grease lubrication

Rotating part

Outer Ring Rotation

Load direction

Multi-load

Structure

Separable Inner Ring

B . XR820060 Cross Tapered Roller Bearings Specification Sheet

Model
Number

Main dimensions (mm)

Basic dynamic
load rating

Limiting
speed
(Oil)
r/m

Weight
(Kg)

Exchange model

Inner ring
d (mm)

Outer ring
D(mm)

Width B(mm)

Chamfer r(min)

Radial
Cr(KN)

Axial
Ca(KN)

SKF

NACHI

URB

PSL

XR820060

580

760

106

209

300

100

615662A

580XRN76

XD.10.0580P5

PSL 912-304A

C . XR type Cross Tapered Roller Bearings Details

Product Features

Cross tapered roller bearing contains two sets of races and rollers brought together at high angles with alternate rollers facing in opposite directions. The height of cross section is similar to single-row bearing for conserving space and saving bearing housing material.And the steep-angle,tapered geometry results in a total effective bearing spread much greater than the width of the bearing itself.

Series Model No.

XR496051,XR678052(PSL912-309A),XR766051(PSL912-308A),XR820060(PSL912-304A),XR855053(PSL912-305A),XR882055(PSL912-306A),XR889058(PSL912-307A),XR897051,JXR637050,JXR652050,JXR699050 ,616093A,615661A,300XRN50,615894A,0457XRN060, XD.10.0457P5 ,615662A,580XRN76, XD.10.0580P5 ,615659A,0685XRN091, XD.10.0686P5 ,615895A, 0901XRN112, XD.10.0902P5 , BFKB353282/HA4, 1028XRN132 , XD.10.1029P5 ,615898A, XD.10.1549P5

Applications

Product Application
•Industrial Robotic arm,Reducer drive
•Precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Aviation equipment,Military radar etc

D . XR type Cross Tapered Roller Bearings Installation & Cautions

Bearing Installation Instructions-BYC
